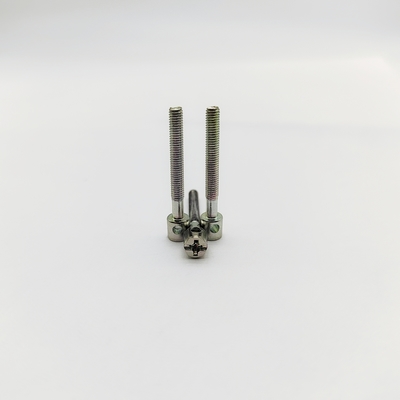

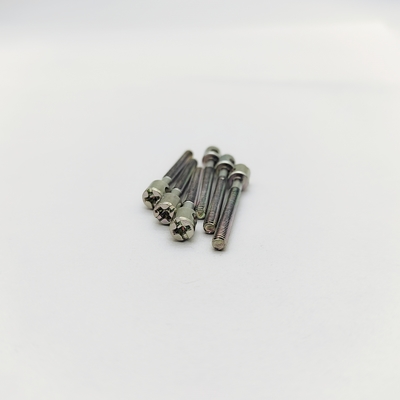

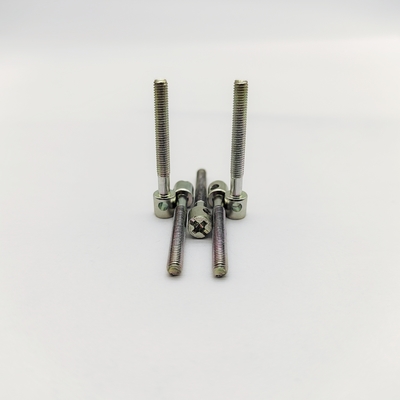

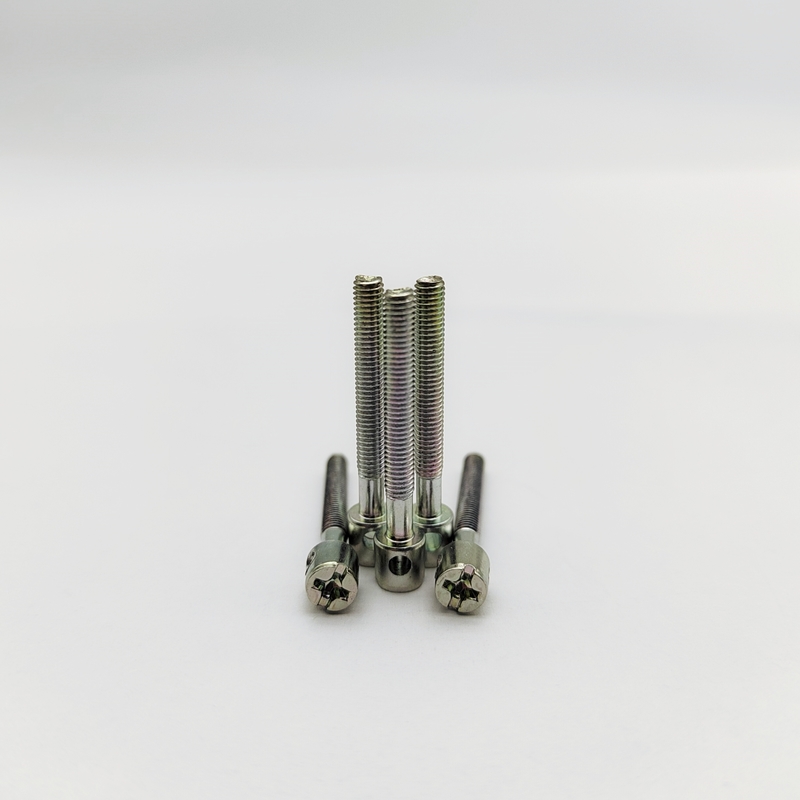

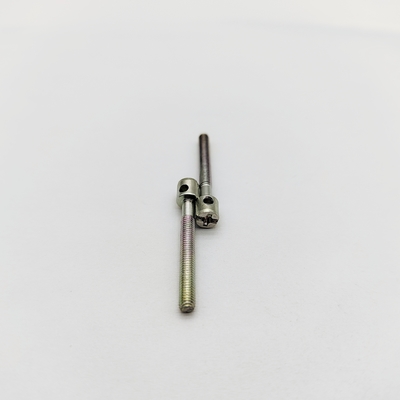

316 Stainless Steel Marine Grade Meter Screws - Tamper Proof M4 M5 M6
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | guanbiao |
| प्रमाणन: | ISO9001 |
| मॉडल संख्या: | M4, M5, M6 |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 50000 |
|---|---|
| मूल्य: | negotiable |
| पैकेजिंग विवरण: | प्लास्टिक बैग + गत्ते का डिब्बा + फूस |
| प्रसव के समय: | 15-20 कार्य दिवस |
| भुगतान शर्तें: | टी/टी |
| आपूर्ति की क्षमता: | 5000000 |
|
विस्तार जानकारी |
|||
| Drive Style: | Phillips/Slotted Combo | Color: | Customizable |
|---|---|---|---|
| Package: | Plastic Bag | Standard: | ISO, Non-standard |
| Production Process: | Cold heading, cold forging | Length: | M4: 16-25mm; M5: 20-30mm; M6: 25-40mm |
| Head Size: | M4-M5 | Use: | For electric meters |
| Customize: | Can Customize As Your Drawing And Design | Affordable: | Yes |
| Material: | Stainless Steel | Quantity: | 50000 Pieces |
| Tooth Size: | Customizable | Rustproof: | Yes |
| प्रमुखता देना: | 316 stainless steel marine grade screws,tamper proof electric meter screws,M4 M5 M6 meter screws |
||
उत्पाद विवरण
| Attribute | Value |
|---|---|
| Drive Style | Phillips/Slotted Combo |
| Color | Customizable |
| Package | Plastic Bag |
| Standard | ISO, Non-standard |
| Production Process | Cold heading, cold forging |
| Length | M4: 16-25mm; M5: 20-30mm; M6: 25-40mm |
| Head Size | M4-M5 |
| Use | For electric meters |
| Customize | Can Customize As Your Drawing And Design |
| Affordable | Yes |
| Material | Stainless Steel |
| Quantity | 50000 Pieces |
| Tooth Size | Customizable |
| Rustproof | Yes |
Premium 316 stainless meter screws for coastal areas. Phillips/slotted combo, round head with hole. M4-M6 sizes. Electropolished finish. Withstands salt spray. ISO 3506 certified.
Engineered for harsh coastal environments, A4 Stainless Electric Meter Screws offer superior saltwater resistance with 316 stainless steel construction. The electropolished finish prevents corrosion while the security hole enables sealing with anti-tamper wires. Ideal for marine meters and coastal utility boxes.
Thread Size: M4, M5, M6
Head Type: Round Head with Signal Security Hole (Ø2.0mm)
Total Length (L): M4: 16-25mm; M5: 20-30mm; M6: 25-40mm
Thread Length: Half Thread (L-4mm)
Head Diameter: M4: 7mm; M5: 8.5mm; M6: 10mm
Drive Type: Phillips/Slotted Combo (PH2/P3 + 4mm Slot)
Material: A4-80 Stainless Steel (316)
Surface Treatment: Passivation + Electropolishing (Ra<0.4µm)
Customization: Custom hole diameters, laser engraving
- Coastal electricity substations
- Offshore meter cabinets
- Chemical plant metering
- High-humidity regions
- ISO 15118-compliant EV chargers
- Clean threads with isopropyl alcohol.
- Install with torque-controlled driver (1.5-3Nm for M5).
- Apply marine-grade seal wire through hole.
- Crimp with numbered security seal.
